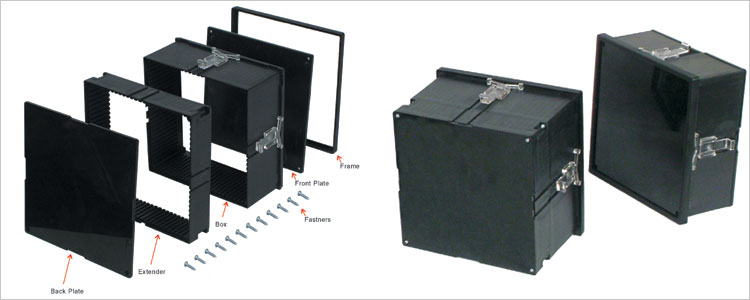

 Electra Series
 192X96
  • Modular Design : Every Extender increase depth by 30mm of Complete Box.
  • PCB Guides : Box is provided with PCB Guides, which accommodate more PCB in Less Depth.
  • Front & Back Plates can be Customize for Quality orders.
  • Four unbreakable clamps are provided for Heavy weight Instruments.

Specifications
Moulded Materials : Fire Retardant Engineering Plastic
Mountings : Panel Mounted
Operating Temp. : 80° C Max
Dimensions : 192X96X55,85,115,145
Colour : Black

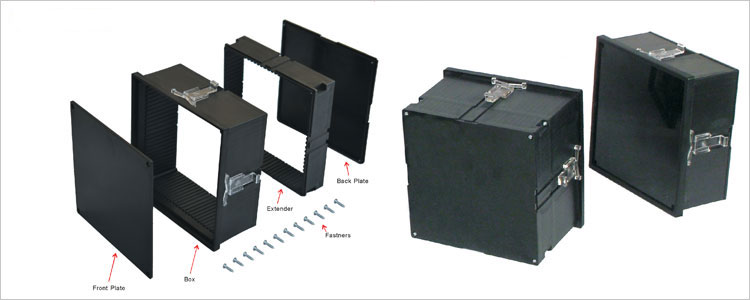

 144X144
  • Modular Design : Every Extender increase depth by 30mm of Complete Box.
  • PCB Guides : Box is provided with PCB Guides, which accommodate more PCB in Less Depth.
  • Front & Back Plates can be Customize for Quality orders.
  • Four unbreakable clamps are provided for Heavy weight Instruments.

Specifications
Moulded Materials : Fire Retardant Engineering Plastic
Mountings : Panel Mounted
Operating Temp. : 80° C Max
Dimensions : 144X144X55,85,115,145
Colour : Black
