SPECIFICATION :

Moulded Materials : Housing And Terminal Cover : ABS Mounting Clip : DELRIN / M.S
Mountings : Din Rail (35mm EN.50022) & Wall Mounting
Terminals : Brass Tin Plated
Elec. Parameters : Voltage Breakdown : >2500V AC Current: 15 Amps. Insulations : 100 meg. Ohms
OPerating Temp : 60 C (MAX.)

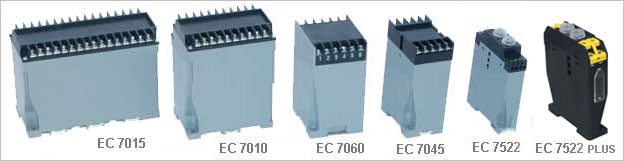

This series of enclosures are available in many sizes with appropriate terminals, these enclosures are din rail (35mm EN.50022 channel) and wall mounted both, These enclosures are provided with inbuilt PCB guides for vibration free PC8 mountings, these enclosures are used where din rail mounted instruments are required, some of applications are panel mounted timers, isolators, relays and many more.

Colours : Light Grey Box with Black Terminal Cover.

CODE TERMINALS

DIMENSIONS

LABEL SIZE WEIGHT DOWNLOAD
PDF
D W H APPROX. APPROX.
Ec 7522 4+4 75 22 100 42 X 19 MM 45 GMS
Ec 7045 5+5 70 45 112 41 X 37 MM 96 GMS
Ec 7060 6+6 70 60 112 54 X 45 MM 115 GMS
Ec 7010 10+10 70 11 112 95 X 36 MM 16O GMS
Ec 7015 16+16 70 150 112 143 X 36 MM 250 GMS
